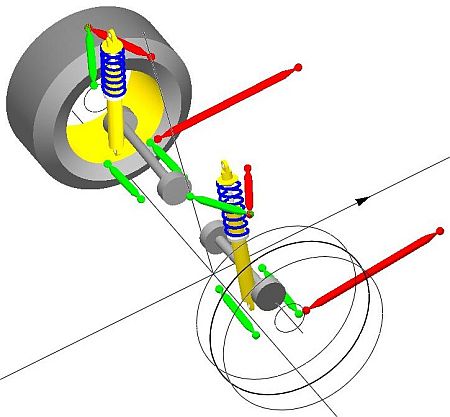

Upper A-arm, lower trailing and lateral links, toe link

Top  Previous  Next

Five chassis mounting points, two for the upper A-arm, one for each of the lower trailing and lateral links, and one for the toe control link.

Five upright mounting points, two for the upper A-arm, one for each of the lower trailing and lateral links, and one for the toe control link.

susp17

The Mitsubishi Galant has the lower trailing and lateral links arranged as a "virtual A-arm".


SusProg3D - Suspension by Design
Version 4.84 23/08/2007.
