2 trailing arms + Panhard rod

Top  Previous  Next

Rear suspension is configured with two trailing arms; front suspension is configured with two leading arms.

The two trailing / leading arm mountings can be a single point.

Three chassis mounting points, one for each trailing / leading arm, one for the Panhard rod.

Three axle mounting points, one for each trailing / leading arm, one for the Panhard rod.

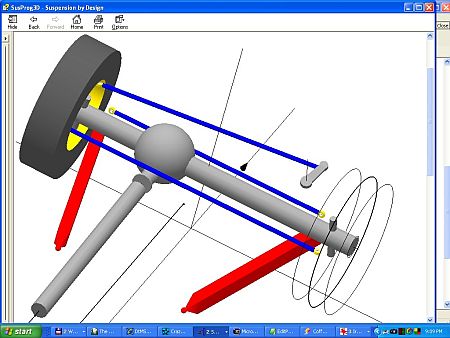

susp121

Typical twin leading arm and Panhard rod front suspension

susp10

Typical twin trailing arm and Panhard rod rear suspension


SusProg3D - Suspension by Design
Version 4.84 23/08/2007.
