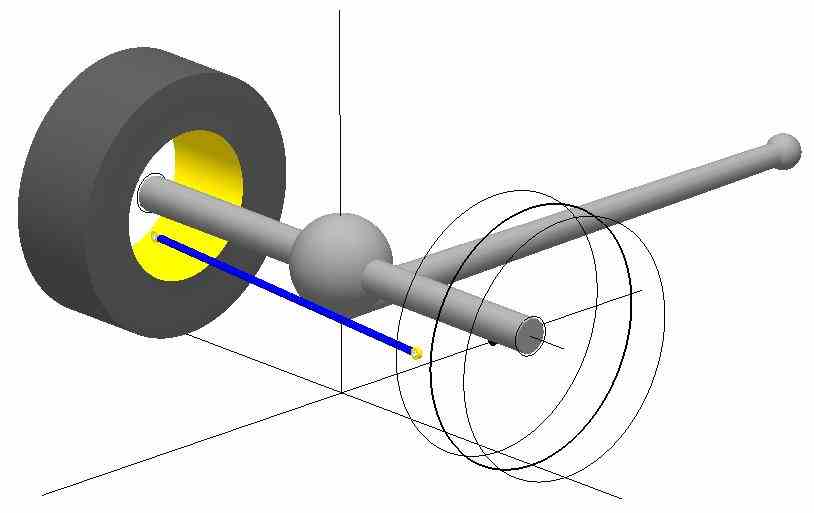

Torque tube + Panhard rod

Top  Previous  Next

Two chassis mounting points, one for the torque tube ball joint, and one for the Panhard rod. The torque tube mounting can be the same point as the rear gearbox universal.

Two axle mounting points, one for torque tube ball joint, one for the Panhard rod.

susp24
