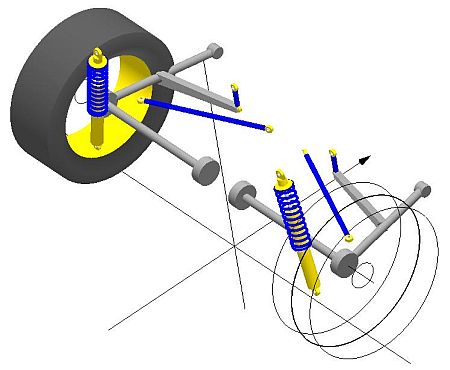

Three chassis Mounting Points. One For The Trailing Arm, One For The Camber Control link, One For The Toe Control Link
As used on Mazda RX7.
.
susp28
In this configuration, the axle hub and spindle assembly (Mazda refer to this as the triaxial floating hub outer assembly) and trailing arm are combined into a single assembly with the trailing arm attached to the chassis at one mounting point, which defines the side view instant centre.
