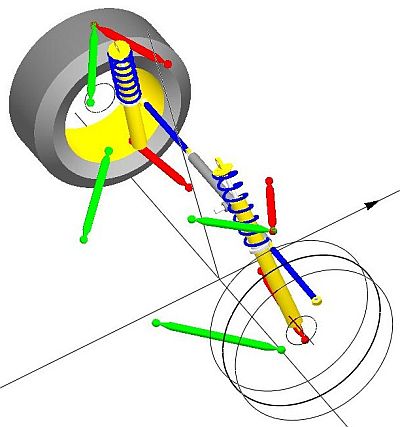

Upper A-arm, lower "virtual A-arm", toe link


Five chassis mounting points, two for the upper A-arm, one for each link of the lower "virtual A-arm", and one for the tie rod pivot (on the steering rack)

Four upright mounting points, one for the upper A-arm, one for each link of the lower "virtual A-arm", and one for the tie rod pivot (on the steering arm).

susp16
