3 or 4 trailing links + Panhard rod

Top  Previous  Next

Rear suspension is configured with trailing links; front suspension is configured with leading links.

Four or five chassis mounting points, one for each trailing / leading link, one for the Panhard rod.
The 3 trailing / leading link configuration has only one top link.

Four or five axle mounting points, one for each trailing / leading link, one for the Panhard rod.

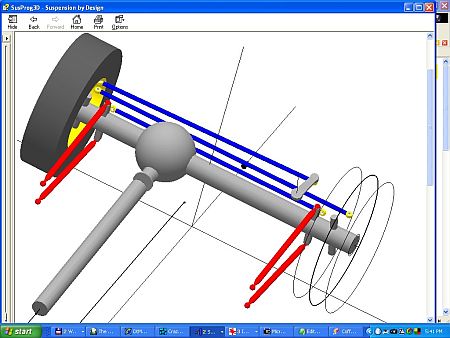

Typical 4 leading link and Panhard rod front suspension

Susp111R

Typical 4 trailing link and Panhard rod rear suspension


SusProg3D - Suspension by Design
Version 4.84 23/08/2007.
