MCSORLEY 442 CHASSIS BUILD

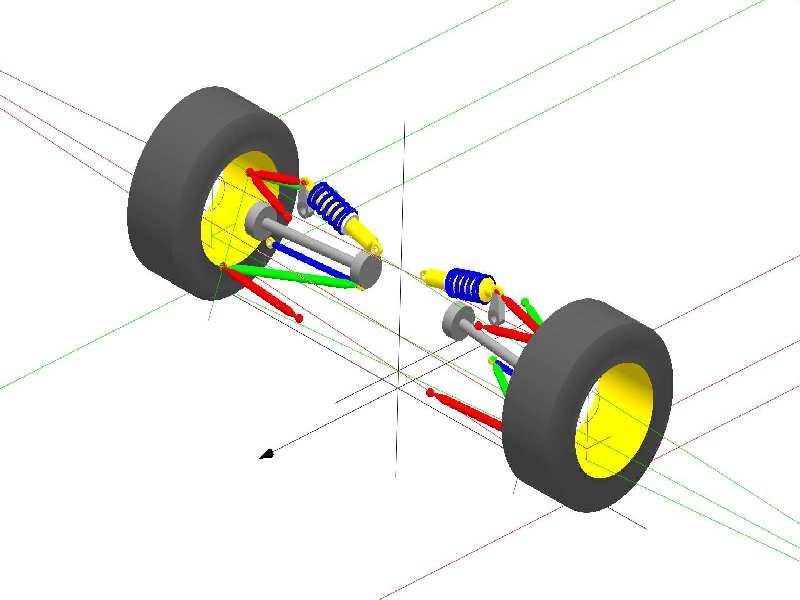

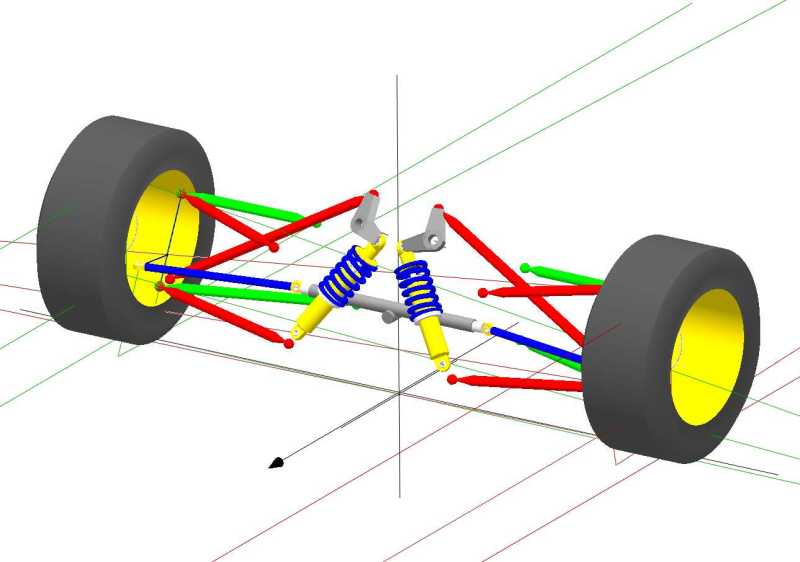

Here is a file I made for my McSorley 442 chassis build. It has inboard motorcycle coilovers front and rear with bellcrank & pushrods at all 4 corners. Rearend dimensions are for the Nissan 240sx differential and halfshafts.

SusProg3D file s3d locost_bellcrank2.s3d You will need the latest version of SusProg3D to view/manipulate it (v 4.75A), which is available for download here: download here

Feel free to use it any way you want. With very minor alternations, it will work for any locost. But, I do need to note that the dimensions are NOT perfect and may or may not be useable. The dimensions were taken with a tape measure and are mabye within .5". This is just to help visualize how this will work for me, and wont be used necessarily for construction. With the demo version, I cant alter some of the suspension upright dimensions, or the wheel offset to give it front wheel drive offset wheels, so those values are not quite accurate, but are close to what I'm using. Courtesy of Jim McSorley. "SEVENESQUE ROADSTER

---
